2D Bluetooth Cordless Handheld Barcode Scanner for Supermarket POS
Product Overview
The DS6100CG is a high-performance 2D wireless barcode scanner featuring advanced CMOS image recognition technology. It efficiently reads barcodes from paper, goods, screens, and other media. Ideal for manufacturing, warehousing, logistics, healthcare, retail chains, mobile payments, express delivery, inventory management, food traceability, and asset management.
Key Features
- Ergonomic design for comfortable operation
- Reads all mainstream 1D and 2D barcodes (4mil resolution)
- Dual interface: USB and Wireless 2.4G
- Ultra-low power consumption
- Bluetooth connectivity with long wireless range for mobile and PC use
- Wide application in supermarkets, warehouses, mobile payments, and chain stores
Technical Specifications
Performance
| Scan Type | CMOS |
|---|
| Light Source | White light |
|---|
| CPU | 32-bit |
|---|
| Resolution | 640*480 |
|---|
| Minimum Resolution | ≥4mil/0.1mm(PCS90%,CODE 39) |
|---|
| Decoding Speed | 25CM/S |
|---|
| Depth of Field | 5mil:50~130mm, 13mil:50~270mm |
|---|
| Scan Mode | Manual, Auto Sense, Continuous |
|---|
| Indicator | LED, Buzzer |
|---|
| Scan Angle | Roll±360°, Pitch±50°, Skew±50° |
|---|
| Print Contrast Signal | ≥25% |
|---|
| Ambient Light | Dark environment, indoor natural light |
|---|
| Supported Symbologies | 1D: Codabar, Code39, Code32, ITF25, Industrial 2 of 5, Matrix 2 of 5, Code93, Code11, Code128, Gs1-128, UPC-A, UPC-E, EAN/JAN-8, EAN/JAN-13, ISBN, ISSN, GS1 databar, GS1 databar limited, GS1 databar expanded, ISBT
2D: PDF417, Micro PDF417, QR Code, Micro QR, Data Matrix, Aztec |
|---|
Physical Parameters
| Weight | ≈160g (USB) |
|---|
| Dimensions | L150mm × W70mm × H95mm |
|---|
| Interface Type | USB |
|---|
| Power Supply | DC 5V@150mA (work) |
|---|
| IP Rating | IP42 |
|---|
| Supported Systems | Windows, Mac OS, iOS, Linux, Unix, Android |
|---|
Environmental Specifications
| Operating Temperature | -20ºC to 55ºC |
|---|
| Storage Temperature | -20ºC to 60ºC |
|---|
| Humidity | 5% to 95% (non-condensing) |
|---|
| Drop Height | 1.5m |
|---|
| Temperature Test | 30 minutes for high temp. (60ºC), 30 minutes for low temp. (-20ºC) |
|---|
| Transport Vibration Test | 10H@125RPM |
|---|
Included Accessories
| Cable | USB, connects the scanner to a host device and provides charging |
|---|
| Receiver | Used to receive and transmit scanner data |
|---|

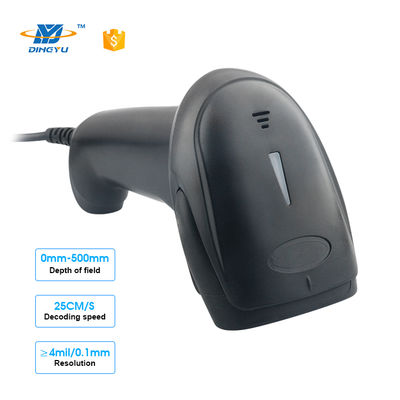

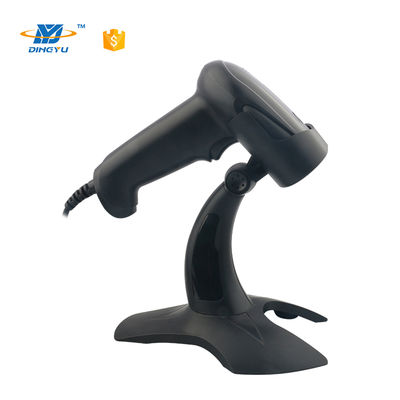

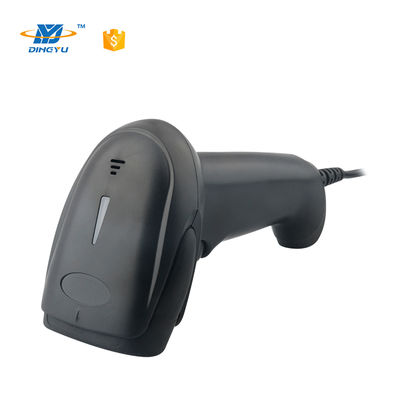

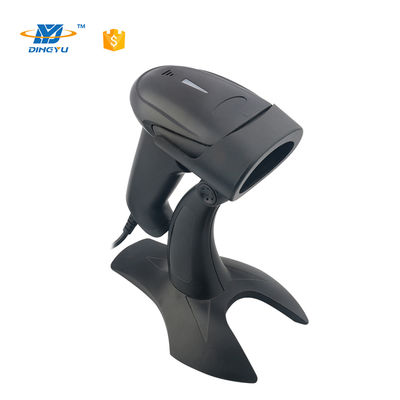

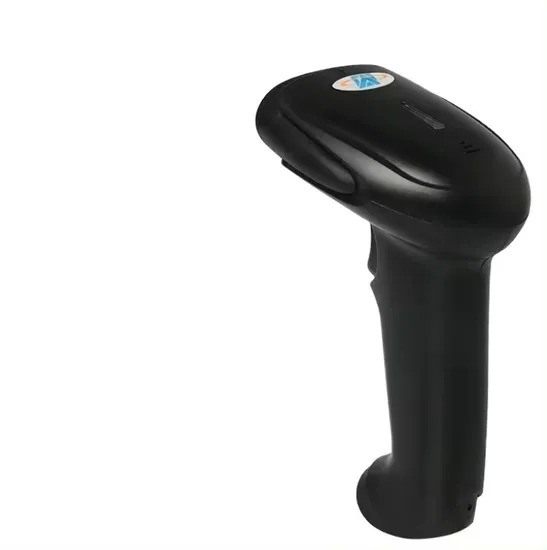

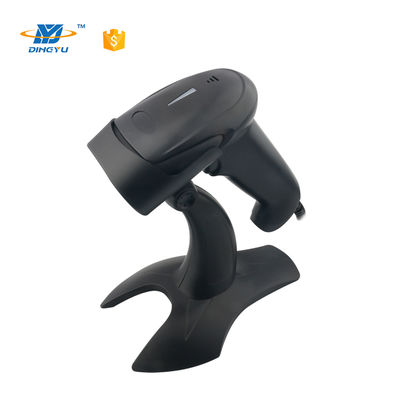

Product Images
Application Example
Frequently Asked Questions
Q1: How do you ensure the high quality of your barcode scanners?
We are professional manufacturers and developers of barcode scanners with 18 years of field experience. Our quality control includes professional testing machines (engine age test, wire bend machine, switch life test, shock resistance test). All scanners pass CE, FCC, and ROHS certifications.
Q2: What is your quality control process?
We conduct wire bend tests 1 million times, button tests 1 million times, and all devices are tested before shipping.
Q3: What is the warranty period?
12 months warranty.
Q4: How do you maintain stable performance?
We use flow line production and test each product at least 4 times before delivery.
Q5: Do you offer OEM/ODM services?
Yes, we provide OEM services including custom logos, packaging, and manuals. Our technical team supports ODM development.
Q6: What are your company strengths?
We have specialized departments for R&D, production, testing, marketing, sales, and customer service to ensure professional support at every stage.
Q7: Are drivers required?
No, our scanners support plug-and-play operation with Windows, Mac OS, iOS, Linux, UNIX, and Android systems without additional drivers.
