Rugged Handheld 2D Barcode Scanner with 32-Bit CPU and 640*480 Resolution for High-Speed Scanning
Productdetails:
Betalen & Verzenden Algemene voorwaarden:
Min. bestelaantal: 1
Contact
Gedetailleerde productomschrijving
Model nr.: DS5900-2D interfacetype: USB
Scansnelheid: 300 aftasten/seconden Scanelement: CMO's
CPU: met 32 bits Oplossing: 640*480
Resolutieverhouding: 3 miljoen/0,076 mm Het decoderen snelheid: 65cm/s
Fieldeddiepte: 10 mm~550 mm Scanmodus: Handmatig, automatisch, continu
Print contrast: 25% Gewicht: 160 g
Dimensie: L175,5 mm * B72,5 mm * H102,5 mm Stroomvoorziening: Gelijkstroom 5V@180mA (werk)
Bedrijfstemperatuur: -20ºC tot 55 ° C
Markeren:

32-Bit CPU 2D Barcode Scanner

,

640*480 Resolution Handheld Barcode Scanner

,

3mil Reading Ability QR Code Scanner

DS5900-2D Rugged Handheld Barcode Reader
The DS5900-2D is a high-performance wireless 2D barcode scanner featuring advanced CMOS image recognition technology. Capable of reading barcodes from paper, goods, screens, and other media, this scanner is ideal for manufacturing, warehousing, logistics, healthcare, retail, mobile payments, and inventory management applications.
Key Features
  • Ergonomic design for comfortable extended use
  • Reads all mainstream 1D & 2D barcodes with ease
  • High-performance processor enables fast decoding (3mil resolution)
  • Supports multiple languages and operating systems
  • USB interface with 150m transmission range
  • Intelligent automatic reconnection when out of range
  • Widely compatible with various business environments
Technical Specifications
Performance
Scan TypeCMOS
Light SourceRed aim light, white fill light
CPU32-bit
Resolution640×480
Minimum Resolution≥3mil/0.076mm (PCS90%, CODE 39)
Decoding Speed65CM/S
Depth of Field10mm~550mm (varies by barcode type)
Scan ModesManual, Auto Sense, Continuous
IndicatorsLED, Buzzer
Scan AngleRoll±360°, Pitch±60°, Skew±55°
Print Contrast Signal≥25%
Ambient LightDark environment to indoor natural light
Supported Symbologies
1D BarcodesCodabar, Code39, Code32, ITF25, Industrial 2 of 5, Matrix 2 of 5, Code93, Code11, Code128, GS1-128, UPC-A, UPC-E, EAN/JAN-8, EAN/JAN-13, ISBN, ISSN, GS1 databar (all variants), ISBT
2D BarcodesPDF417, Micro PDF417, QR Code, Micro QR, Data Matrix, Aztec
Physical Parameters
Weight≈160g (USB model)
Dimensions175.5mm × 72.5mm × 102.5mm
InterfaceUSB
Power SupplyDC 5V@180mA (operating)
IP RatingIP42
Supported SystemsWindows, Mac OS, iOS, Linux, Unix, Android
Environmental Specifications
Operating Temperature-20ºC to 55ºC
Storage Temperature-20ºC to 60ºC
Humidity5% to 95% (non-condensing)
Drop Height1.5m
Temperature Testing30 minutes at 60ºC and -20ºC
Transport Vibration Test10H@125RPM
Included Accessories
CableUSB cable for device connection and charging
ReceiverFor receiving and transmitting scanner data

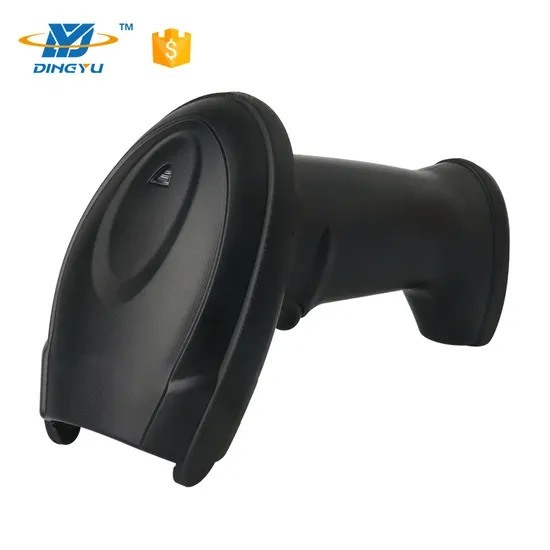

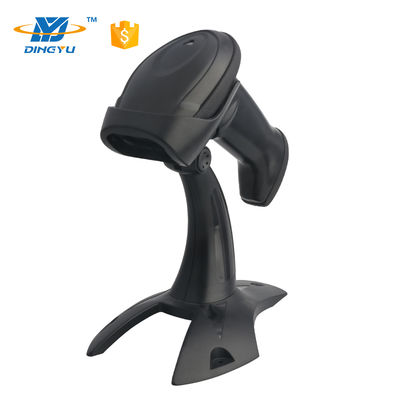

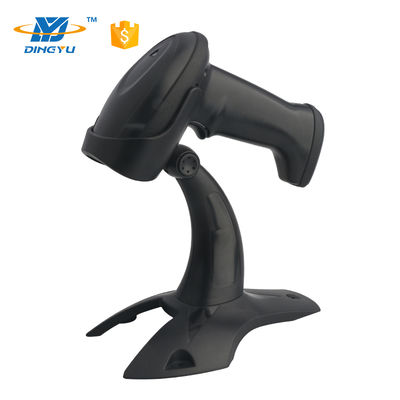

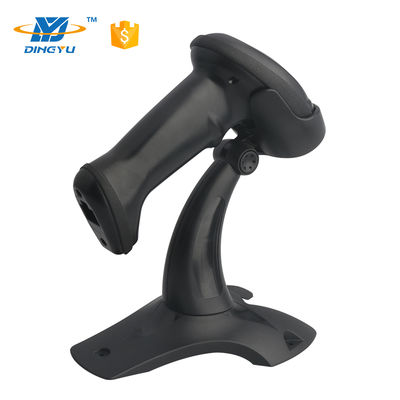

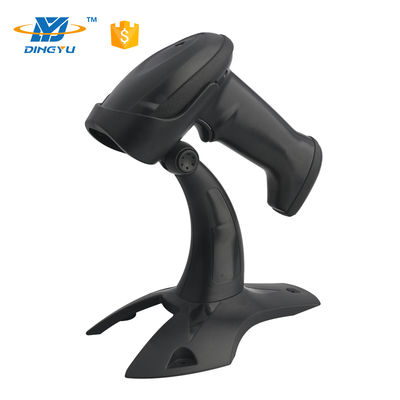

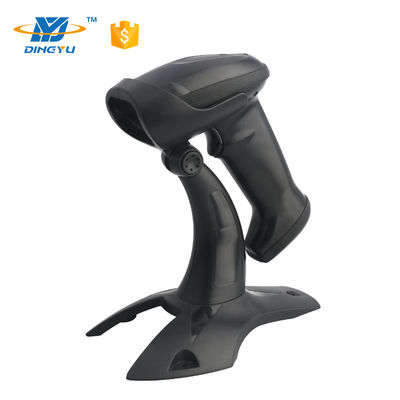

Product Images
Rugged Handheld 2D Barcode Scanner with 32-Bit CPU and 640*480 Resolution for High-Speed Scanning 0
Rugged Handheld 2D Barcode Scanner with 32-Bit CPU and 640*480 Resolution for High-Speed Scanning 1
Rugged Handheld 2D Barcode Scanner with 32-Bit CPU and 640*480 Resolution for High-Speed Scanning 2
Rugged Handheld 2D Barcode Scanner with 32-Bit CPU and 640*480 Resolution for High-Speed Scanning 3
Rugged Handheld 2D Barcode Scanner with 32-Bit CPU and 640*480 Resolution for High-Speed Scanning 4
Rugged Handheld 2D Barcode Scanner with 32-Bit CPU and 640*480 Resolution for High-Speed Scanning 5
Frequently Asked Questions
Q: How do you ensure the high quality of your barcode scanners?
A: With 18 years of professional manufacturing experience, we maintain strict quality control including engine age tests, wire bend tests, switch life tests, and shock resistance tests. All scanners are CE, FCC, and ROHS certified.
Q: What is your quality control process?
A: We conduct 1 million wire bend tests and button press tests. Every device undergoes thorough testing before shipment.
Q: What is the warranty period?
A: We provide a 12-month warranty for all our barcode scanners.
Q: How do you ensure stable performance?
A: Our assembly line production includes at least 4 quality checks before delivery.
Q: Do you offer OEM/ODM services?
A: Yes, we provide OEM services including custom branding and packaging. Our technical team supports ODM development.
Q: Do I need to install drivers?
A: No, our scanners support plug-and-play operation with Windows, Mac OS, iOS, Linux, UNIX, and Android systems.
