Name: Automatic Fast Scanning 1D 2D Handheld Barcode Scanner with 3mil Code39 and 1.5m Cable Length
Brand: Shenzhen DYscan Technology Co., Ltd
Price: 15 USD
Availability: InStock

Thuis Producten 2D barcodescanner

Automatic Fast Scanning 1D 2D Handheld Barcode Scanner with 3mil Code39 and 1.5m Cable Length

Productdetails:

Betalen & Verzenden Algemene voorwaarden:

Min. bestelaantal:	1
Prijs:	15

Contact

Gedetailleerde productomschrijving

Model nr.:	DS5900-2D	interfacetype:	USB
Scanelement:	CMO's	Cameraresolutie:	640*480
Streepje resolutie:	3Mil code39	Fieldeddiepte:	30-600 mm
Scanmodus:	Handmatig, continu, automatisch scannen	Print contrast:	15%
CPU:	met 32 bits	Kabellengte:	1,5 m
Gewicht:	160 g	Stroomvoorziening:	Gelijkstroom 5V 200mA
Dimensie:	L165.5mm * W63.5mm * H92.3mm	Opslagtemperatuur:	-40 tot 60 graden
Hoogte laten vallen:	1,5 m
Markeren:	1D 2D Handheld Barcode Scanner , 3mil Code39 Barcode Scanner , 1.5m Cable Length QR Code Scanner

Automatic Fast Scanning with Wired USB POS Supermarket Handheld 1D 2D Barcode Reader Scanner

The DS5900-2D is a durable wired 2D handheld barcode scanner with excellent fall resistance. It efficiently reads barcodes from various surfaces including paper, goods, and digital screens. Ideal for multiple industries including manufacturing, warehousing, logistics, healthcare, retail chains, and mobile payment systems.

Key Features

High-performance 2D barcode scanning capability
Robust construction with 1.5m drop resistance
Wide operating temperature range (-20ºC to 55ºC)
Multiple scanning modes: Manual, Continuous, Auto Sense
Supports extensive 1D and 2D barcode symbologies
USB interface with 1.8m cable length

Technical Specifications

Parameter	Specification
Scan Type	CMOS
Light Source	Red Light LED 525±10nm (aim), 5600K LED (Lighting)
CPU	32-bit
Resolution	640*480
Minimum Resolution	≥3mil/0.1mm (PCS90%, CODE 39)
Decoding Speed	65CM/S
Depth of Field	30-600mm
Scan View	41° * 31°
Scan Angle	Roll: ±360°, Pitch: ±60°, Yaw: ±55°
Weight	≈160g (without cable)
Dimensions	165.5mm * 63.5mm * 92.3mm
Power Supply	DC5V input, decoding current: 200mA

Environmental Specifications

Parameter	Specification
Operating Temperature	-20ºC to 55ºC
Storage Temperature	-40ºC to 60ºC
Humidity	5% to 95% (non-condensing)
Drop Height	1.5m

Supported Symbologies

1D Barcodes

UPC-A, UPC-E, EAN-8, EAN-13, Code 128, GS1-128, Code 39, Code 32, Code 93, Code 11, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, Standard 2 of 5, Codabar, MSI, GS1 Databar, China Post, Tepepen, Febraban, GS1 Composite, Japan Post

2D Barcodes

QR Code, Micro QR Code, Data Matrix, PDF417, Micro PDF 417, MaxiCode, Aztec, HanXin Code

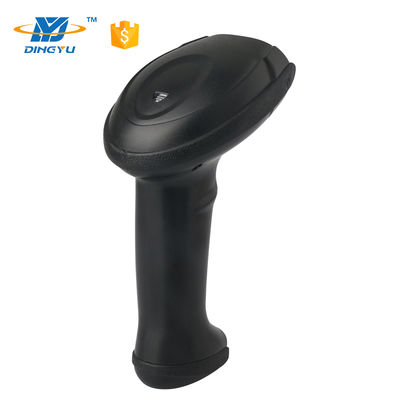

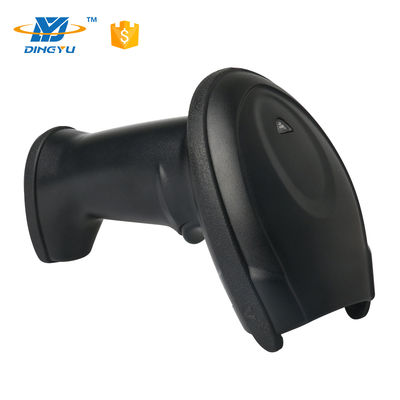

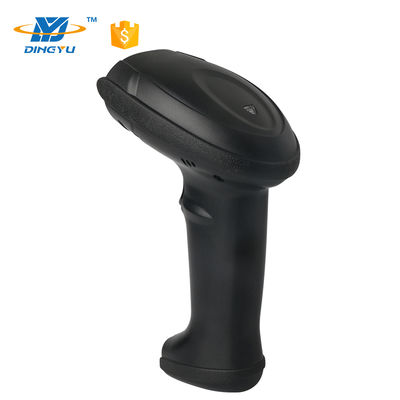

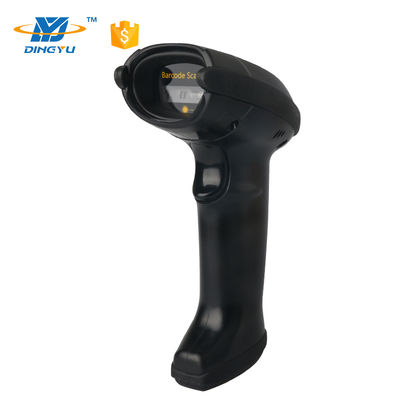

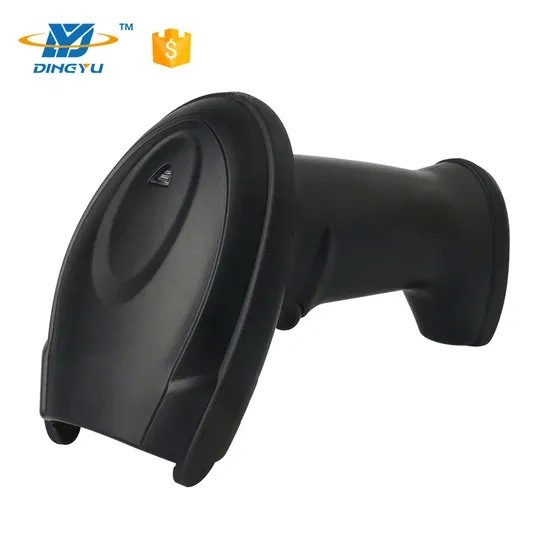

Product Images
