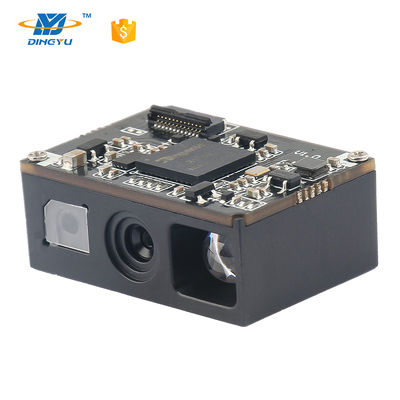

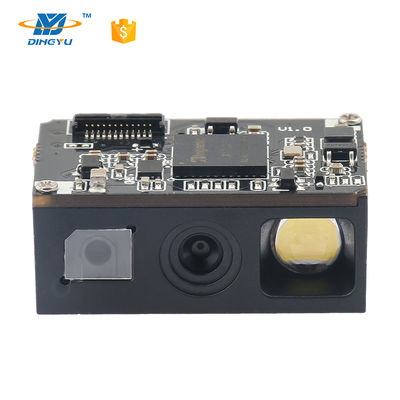

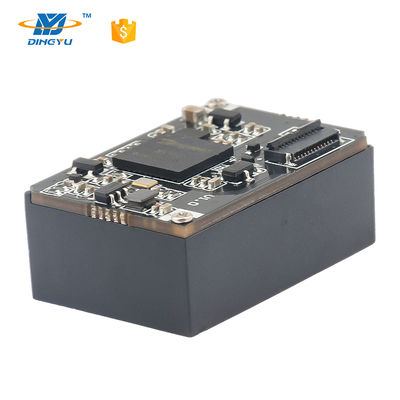

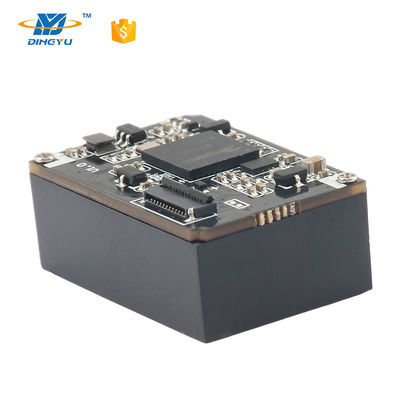

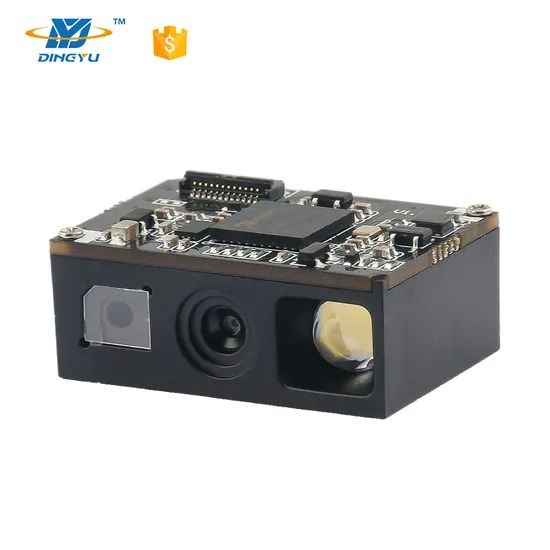

Mini 2D Barcode Scan Engine with 5.5g Weight and 70-750mm Depth of Field for Embedded Applications

Mini 2D Barcode Scan Engine with 5.5g Weight and 70-750mm Depth of Field for Embedded Applications

  • Mini 2D Barcode Scan Engine with 5.5g Weight and 70-750mm Depth of Field for Embedded Applications
  • Mini 2D Barcode Scan Engine with 5.5g Weight and 70-750mm Depth of Field for Embedded Applications
  • Mini 2D Barcode Scan Engine with 5.5g Weight and 70-750mm Depth of Field for Embedded Applications
  • Mini 2D Barcode Scan Engine with 5.5g Weight and 70-750mm Depth of Field for Embedded Applications
  • Mini 2D Barcode Scan Engine with 5.5g Weight and 70-750mm Depth of Field for Embedded Applications
  • Mini 2D Barcode Scan Engine with 5.5g Weight and 70-750mm Depth of Field for Embedded Applications
Mini 2D Barcode Scan Engine with 5.5g Weight and 70-750mm Depth of Field for Embedded Applications
Productdetails:
Betalen & Verzenden Algemene voorwaarden:
Min. bestelaantal: 1
Prijs: 25
Contact
Gedetailleerde productomschrijving
Modelnr.: DE2690D Interfacetype: USB
Scansnelheid: 65cm/s Scanelement: CMO's
Oplossing: 3 miljoen/0,076 mm Beeldsensor: 1280*480
Voeding: Gelijkstroom 3,3 V, 220 mA Gewicht: 5.5g
Afmetingen: 28,3 mm L* 19,1 mm B * 12,0 mm H Fieldeddiepte: 70-750 mm
Lichtbron: Witte LED, Rode LED CPU: ARM32-bits
Bedrijfstemperatuur: -20ºC tot 55 ° C Opslagtemperatuur: -40 tot 70°C
Vochtigheid: 5% tot 95%
Markeren:

Mini Barcode Scan Engine

,

5.5g Weight Barcode Scan Engine

,

70-750mm Depth of Field 2D Barcode Module

Mini 2D Barcode Scan Engine with 5.5g Weight and 70-750mm Depth of Field for Embedded Applications 0
OEM ODM Mini OCR Passport ID Card Embedded Barcode Scanner 2D Wired Module
A compact and versatile 2D barcode scanner module designed for embedded applications, featuring OCR capabilities for passport and ID card reading.
Mini 2D Barcode Scan Engine with 5.5g Weight and 70-750mm Depth of Field for Embedded Applications 1
Technical Specifications
Parameter Value
Weight 5.5g (without cable)
Size 28.3mm L × 19.1mm W × 12.0mm H
Interface USB, USB-com (requires driver), TTL
(USB protocol: Full Speed, USB 2.0)
Light Source White LED (auto brightness adjustment), Red aiming LED (525nm wavelength)
CMOS 1280×800 resolution
CPU ARM 32-bit
Resolution 1D: ≥3mil
Depth of Field 70-750mm (varies by barcode type)
Scan Modes Manual, Auto, Continuous, Command control
Reading Angles Roll: ±360°, Pitch: ±60°, Yaw: ±55°
Motion Tolerance 65cm/s
Power Requirements 3.3V, 220mA (Work), 120mA (Standby), 40mA (Sleep)
Operating Temperature -20°C to 55°C
Storage Temperature -40°C to 70°C
Humidity 5% to 95% (non-condensing)
Supported Symbologies
1D Barcodes:
  • UPC-A, UPC-E, EAN-8, EAN-13
  • Code 128, GS1-128, Code 39, Code 93
  • Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5
  • Codabar (NW-7), MSI, GS1 Databar
  • China Post, Tepepen, Febraban, GS1 Composite
2D Barcodes:
  • QR Code, Micro QR Code
  • Data Matrix, PDF417, Micro PDF417
  • MaxiCode, Aztec, HanXin Code
Mini 2D Barcode Scan Engine with 5.5g Weight and 70-750mm Depth of Field for Embedded Applications 2 Mini 2D Barcode Scan Engine with 5.5g Weight and 70-750mm Depth of Field for Embedded Applications 3 Mini 2D Barcode Scan Engine with 5.5g Weight and 70-750mm Depth of Field for Embedded Applications 4 Mini 2D Barcode Scan Engine with 5.5g Weight and 70-750mm Depth of Field for Embedded Applications 5
Certifications
Mini 2D Barcode Scan Engine with 5.5g Weight and 70-750mm Depth of Field for Embedded Applications 6
Company Profile
Mini 2D Barcode Scan Engine with 5.5g Weight and 70-750mm Depth of Field for Embedded Applications 7
Exhibition
Mini 2D Barcode Scan Engine with 5.5g Weight and 70-750mm Depth of Field for Embedded Applications 8

label:

de module van de streepjescodelezer,

oem van de streepjescodescanner module,

oem de module van de streepjescodescanner
