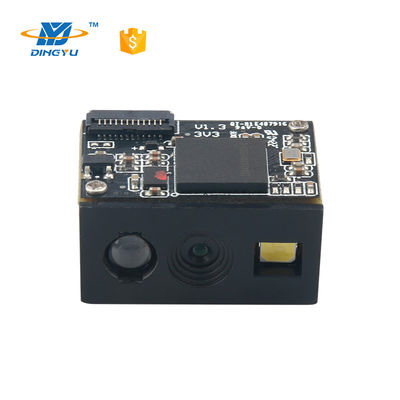

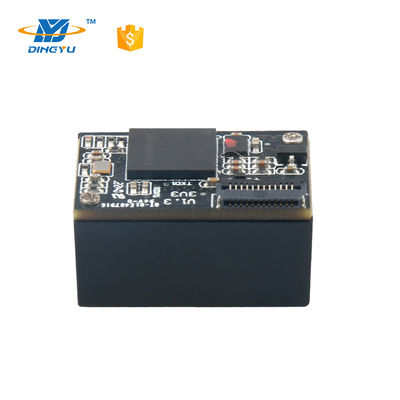

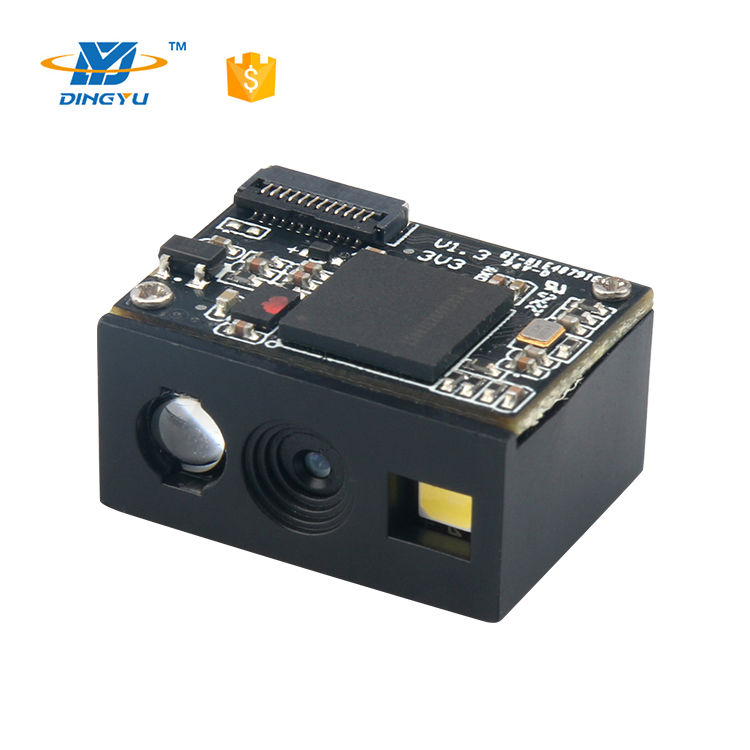

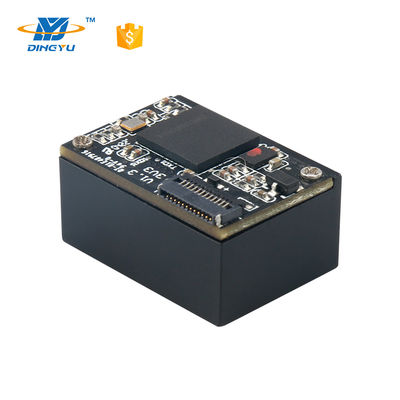

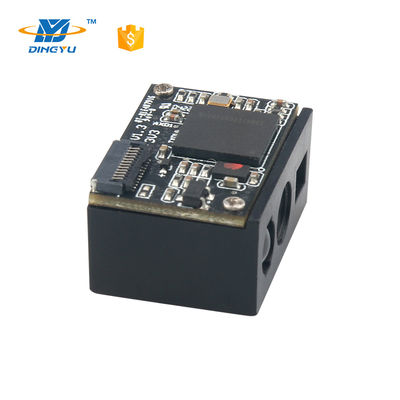

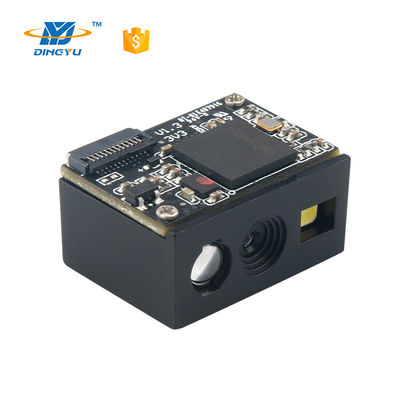

Name: Small High Sensitive 1D 2D Barcode Scanner Module with 300,000 Global Pixel and 640*480 Image Sensor
Brand: Shenzhen DYscan Technology Co., Ltd
Price: 10 USD
Availability: InStock

Thuis Producten De motor van het streepjescodeaftasten

Small High Sensitive 1D 2D Barcode Scanner Module with 300,000 Global Pixel and 640*480 Image Sensor

Productdetails:

Betalen & Verzenden Algemene voorwaarden:

Min. bestelaantal:	1
Prijs:	10

Contact

Gedetailleerde productomschrijving

Modelnr.:	DE2290H	Interfacetype:	USB, TTL
Scansnelheid:	35cm/s	Scanelement:	CMO's
Oplossing:	3 miljoen/0,076 mm	Beeldsensor:	640*480
Print contrast:	20%	Voeding:	DC 3,3 V
Huidig:	200mA werk	FFC-kabel:	5 cm
Hoogte laten vallen:	1,2 m	Gewicht:	3,5 g
Fieldeddiepte:	40-530 mm	Afmetingen:	21,3 mm L * 15,50 mm B * 11,50 mm H
Bedrijfstemperatuur:	-20ºC tot 50ºC
Markeren:	1D 2D Barcode Scanner Module , 300 , 000 Global Pixel Barcode Scan Engine , 640*480 Image Sensor Embedded Barcode Scanner

OEM Small High Sensitive Engine 1D 2D CMOS USB TTL Barcode Scanner Module

The DE2290H is a high-performance 300,000 global pixel embedded 2D image module featuring advanced CMOS image recognition technology and intelligent image recognition system. With excellent reading performance, it can easily read barcodes on various media including paper, merchandise, and digital screens.

Key Features

Compact design for easy integration into various equipment
High sensitivity CMOS sensor with global shutter
Wide reading range from 40mm to 530mm
Supports both 1D and 2D barcode symbologies
Multiple scan modes including manual, continuous, and auto-sense
Ideal for self-service machines, price checkers, and lockers

Technical Specifications

Parameter	Specification
Communication	USB (USB-KBW, USB-COM, HID-POS), TTL
Scan Type	CMOS, Global shutter
Resolution	300,000 pixel (640×480)
Reading Precision	≥3mil/0.076mm (PCS90%, CODE 39)
Depth of Field	40mm~530mm (varies by barcode type)
Decoding Speed	35CM/S
Scan Modes	Manual, Continuous, Auto Sense, Command control
Field of View	41° × 31°

Supported Symbologies

1D Barcodes: UPC-A, UPC-E, EAN-8, EAN-13, Code 128, GS1-128, Code 39, Code 32, Code 93, Code 11, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, Standard 2 of 5, Codabar, MSI, GS1 Databar, China Post, Tepepen, Febraban, GS1 Composite

2D Codes: QR Code, Micro QR Code, Data Matrix, PDF417, Micro PDF 417, MaxiCode, Aztec, HanXin Code

Physical Specifications

Weight: Approximately 3.5g

Dimensions: 21.3mm (L) × 15.50mm (W) × 11.50mm (H)

FPC Cable Length: 5CM (single-sided)

Interface: FPC 12PIN Pitch 0.5

Electrical Specifications

Power Supply: DC 3.3V

Current: 200mA (Average Work), 95mA (Standby), 38mA (Sleep)

Environmental Specifications

Operating Temperature: -20ºC to 50ºC

Storage Temperature: -40ºC to 60ºC
