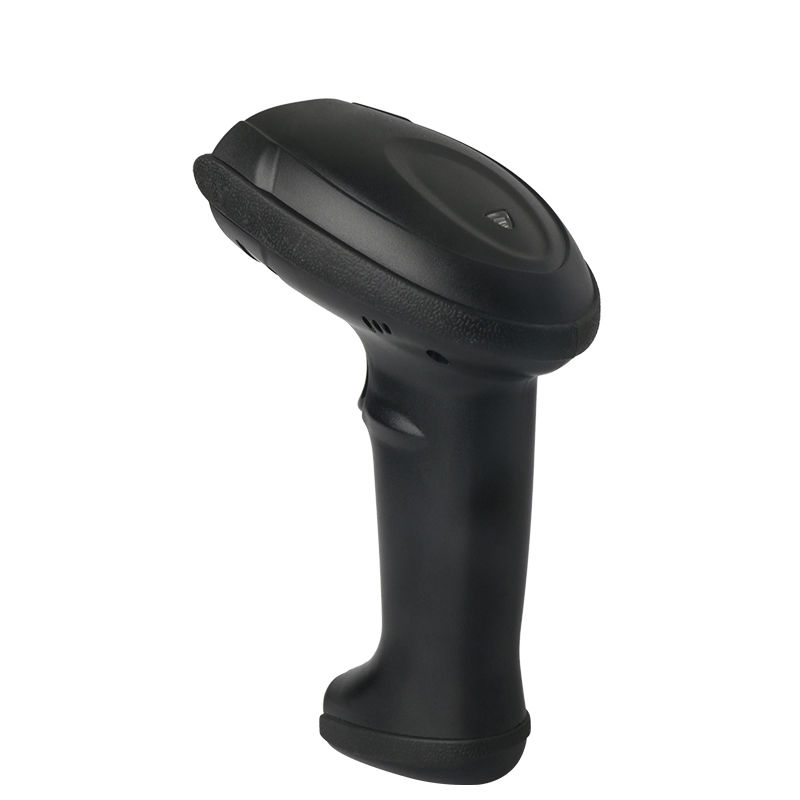

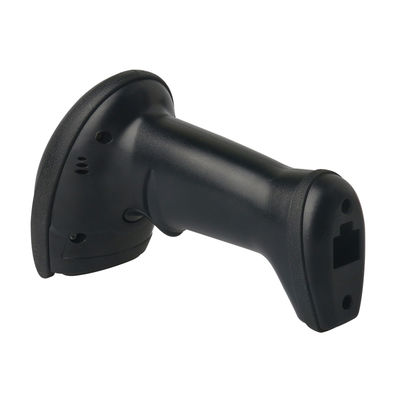

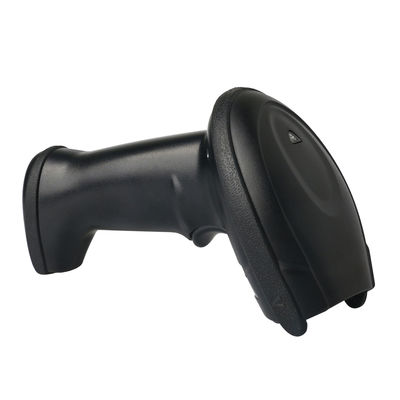

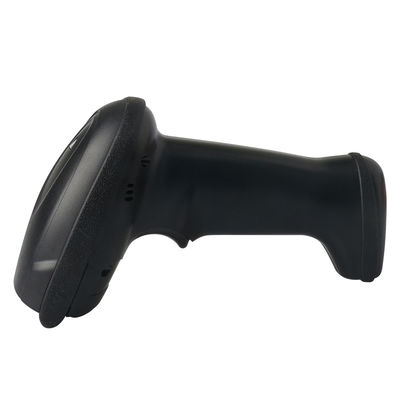

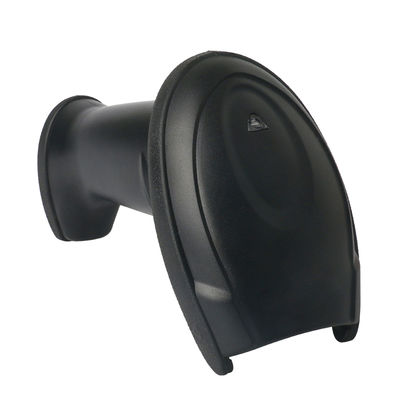

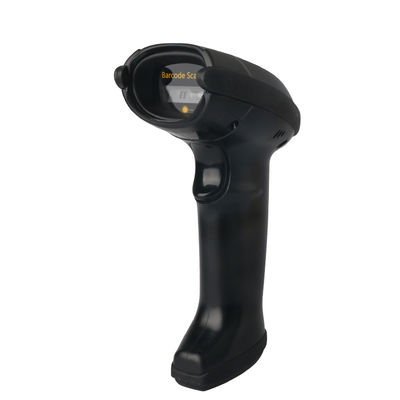

Name: DS5900-1D CCD Barcode Scanner 300 Scans/sec USB 1.5m Cable
Brand: Shenzhen DYscan Technology Co., Ltd
Price: 10 USD
Availability: InStock

Thuis Producten 1D streepjescodescanner

DS5900-1D CCD Barcode Scanner 300 Scans/sec USB 1.5m Cable

Productdetails:

Betalen & Verzenden Algemene voorwaarden:

Min. bestelaantal:	1
Prijs:	10

Contact

Gedetailleerde productomschrijving

Model nr.:	DS5900-1D	Interfacetype:	USB, RS232
Scansnelheid:	300 aftasten/seconden	Scanelement:	CCD
Oplossing:	3Mil code39	Fieldeddiepte:	10-600mm
CPU:	met 32 bits	Kabellengte:	1,5 m
Gewicht:	160 g	Stroomvoorziening:	DC 5V 80MA
Bedrijfstemperatuur:	-20 tot 55 graden.	Opslagtemperatuur:	-40 tot 60 graden
Afmetingen:	L165.5mm * W63.5mm * H92.3mm	Hoogte laten vallen:	1,5 m
Print contrast:	20%
Markeren:	DS5900-1D barcode scanner with USB , 1D barcode scanner 300 scans/sec , CCD barcode scanner with 1.5m cable

Quick Scanning Code39 Reader CCD 1D Wired USB BT Handheld Barcode Scanner

Product Specifications

Scan Type	Linear CCD
Light Source	Visible red light, 625±10nm
CPU	32-bit
Resolution	2500
Reading precision	≥3mil/0.076mm (PCS90%, Code 39)
Decoding speed	300 times/s
Depth of field	10mm-600mm
Scan Mode	Manual, Continuous, Auto Sense, Flashing
Scan angle	Test Conditions: CODE39, 10mil/0.25mm, PCS90% Pitch: ±60° Roll: ±30° Skew: ±60°
Print Contrast Signal	≥20%
Ambient Light	Dark environment, indoor natural light
Symbologies	UPC-A, UPC-E, EAN-8, EAN-13, ISSN, ISBN, Code 128, GS1-128, ISBT 128, Code 39, Code 93, Code 11, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, Standard 2 of 5 (IATA), Codabar (NW-7), Plessey, MSI Plessey, RSS, China Post, etc.
Weight	≈160g (without cable)
Dimension	L165.5mm × W63.5mm × H92.3mm
Communication Mode	USB (USB-KBW, USB-COM), RS232
Interface Type	USB, RS232
Power Supply	DC 5V@80mA (work)
Operating temperature	-20ºC to 55ºC
Storage temperature	-40ºC to 60ºC
Humidity	5% to 95% (non-condensing)
Drop Height	1.5m
Temp. Test	30 minutes for high Temp., 30 minutes for low Temp. High Temp.: 60ºC Low Temp.: -20ºC
Transport vibration Test	10H@125RPM
